XH2.54mm 4P Bend Pin Header Connector – pack of 5
₹18.00
- Current Rating: 3 A
- Voltage Rating: 250 V
- Pitch: 2.54 mm
- Pins: 4
- Type: Male Right Angle Connector
- Description
- Specification
- Reviews (0)
Description

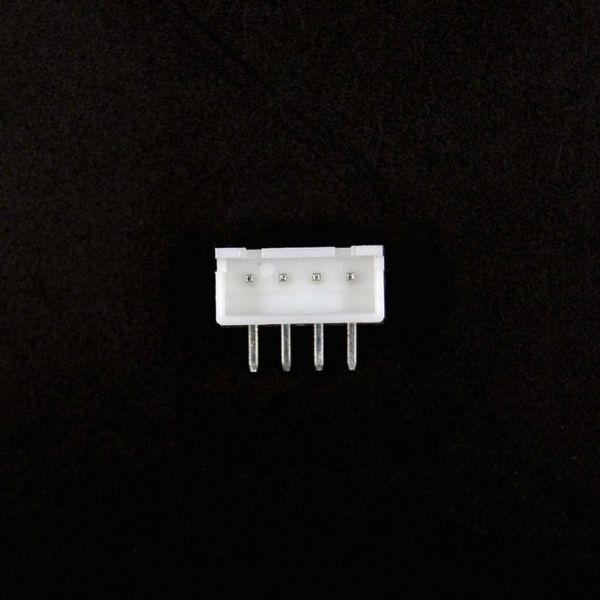

This is a 4 Pin JST Male Right Angle Connector with 2.54 mm Pitch between each pin. It has a current capacity of 3A. This is a Right Angle Entry Version. These are often called Right Angle Connectors or 90 Degree Connectors. It has a locking mechanism that locks the female connectors when inserted and does not get automatically removed.
Features:
- Easy to use
- Lite Weight
- Pins: 4
- Easy to handle
- Small in size
- AC power supply to PCs and lab equipment.
- Used in all types of RCs( cars, boats, planes).
- Also used in CCTV connections, pick-ups, etc.
Package Includes:
1 x 4 Pin JST Male Right Angle connector – 2.54mm Pitch (Pack of 5)
| Model No. | XH2.54mm 4P |
| Product Type | Bend Pin Header Connector |
| Pitch (mm) | 2.54mm |
| Operating Current (A) | 3 A |
| Operating Voltage(V) | 250V |
| Color | White |
| Poles | 4 pins |
| Wire Length(mm) | 0.2mm² (24AWG) |
| Applicable printed board thickness | 0.8 ~1.6mm |
| Operating Temperature (°C) | -25°C ~+85°C |
| Insulation Resistance (MΩ) | ≥1000M ohm |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 × 3 × 1 cm |
