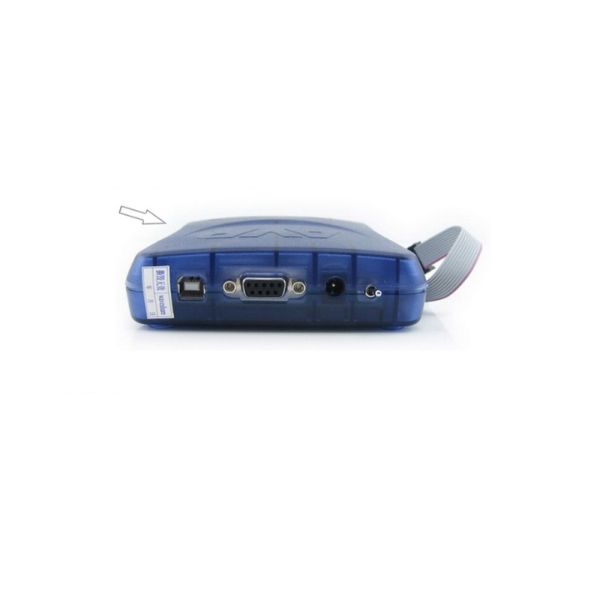

Waveshare USB AVR JTAGICE XPII, AVR Programmers & Debuggers

Description

Debugger & Programmer, compatible with JTAGICE mkII from ATMEL Supports On-Chip Debugging and programming Supports all AVR and AVR32 MCUs with On-Chip Debug capability, including XMEGA devices Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions). Supports AVR Studio 4/5/6 or higher version (delivered with firmware for AVR Studio 5, can be updated to support other AVR Studio versions)

Features:

1. Supports debugging of all AVR and AVR32 devices with OCD
2. Supports programming of all AVR and AVR32 devices with OCD
3. On-Chip Debugging: Run, Single step, Breakpoints, etc.
4. Supports Assembler and HLL Source Level Debugging
5. Programming Interface to flash, EEPROM, fuses, and lock bits (not debugWIRE)
6. USB 1.1 and RS232 Interface to PC for Programming and Control
7. JTAG, PDI, debugWIRE Interface to target board
8. Regulated Power Supply for 9-15V DC Power
9. Can be powered from the USB bus
10. Target operating voltage range of 2.1V to 5.5V

Package Includes:

1 x USB AVR JTAGICE XPII

1 x USB Cable

1 x RS-232 serial cable

1 x Spare 10-pin cable

1 x 10-pin (JTAG) to 6-pin (SPI) probe adapter cable

1 x 10-pin (JTAG) to 10-pin (SPI) probe adapter cable

1 x 10-wire multicolor custom connector cable
