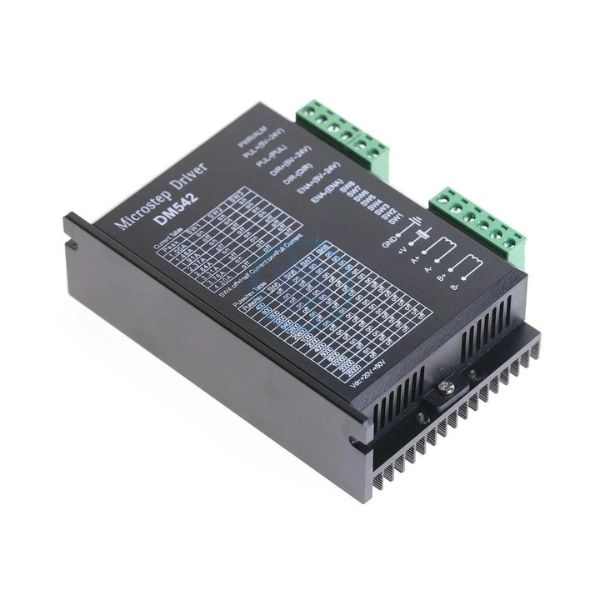

Two Trees – Stepper Motor Driver DM542 4.2A
₹1,329.00
- Extremely cost-effective
- Good high-speed performance
- Automatic idle-current reduction
- 3-state current control technology
- Self-adjustment technology
- Description
- Specification
- Reviews (0)
Description
The Stepper Motor Driver DM542 4.2A is a sophisticated and high-performance motor control device designed specifically for driving stepper motors. Stepper motors are commonly used in various applications where precise positioning, accurate rotation, and controlled motion are essential, such as CNC machines, 3D printers, robotics, and automated systems. The DM542 4.2A driver is engineered to provide the necessary control and power amplification required for these demanding tasks.
Features:
- Extremely cost-effective
- Good high-speed performance
- Automatic idle-current reduction
- 3-state current control technology
- Self-adjustment technology
- Pure-sinusoidal current control technology
- TTL compatible and optically isolated input
- 15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
- Suitable for 2-phase
- DIP switch current setting with 8 different values
Package Includes:
1 x Stepper Motor Driver DM542 4.2A
| Minimum Supply Voltage (V) | 24-60 (V) |
| Maximum Output Current | 4.5A |
| Logic input current | 10-20mA |
| Operating Temperature (°C) | -15°-+45° |
| Shipment Weight | 0.153 kg |
| Shipment Dimensions | 13 × 9 × 4 cm |
