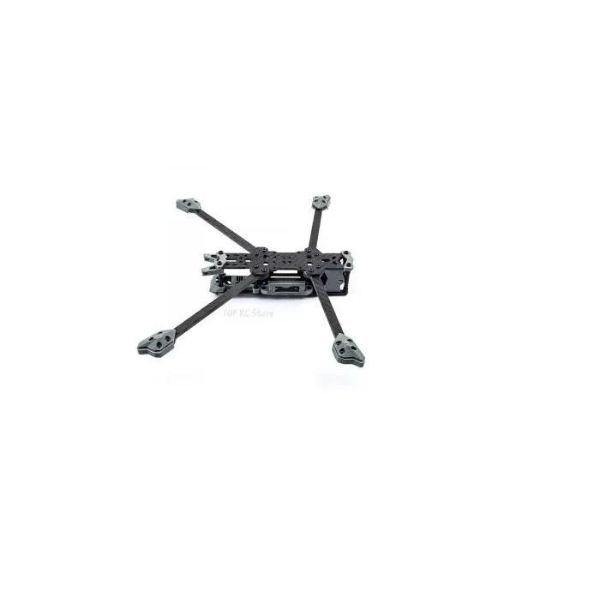

TITAN DC7 HD 333mm FPV Freestyle Frame
₹3,649.00
- Product: TITAN DC7 HD 333mm FPV Freestyle Frame
- Wheelbase (mm): 333
- Main body dimension (mm): 183*287
- Bottom-to-top distance (mm): 35
- Arm thickness (mm): 6
- Description
- Specification
- Reviews (0)
Description
The TITAN DC7 HD Frame perfectly fits the amazing new DJI FPV system with boomerang arms, this quad makes flying FPV truly breathtaking.
Features:
- Popular Deadcat style configuration, No prop in View
- Optimized weight distribution: DJI unit and Stack centered
- Fits both 30.5x and 20x stacks
- Full 3K Carbon Fiber airframe with chamfered boomerang arm
- 333mm wheelbase, weight: 208.8g dry with TPU parts
- Recommended motors: 22xx, 23xx
Package Includes:
1 x TITAN DC7 HD Frame
1 x Screw Bag
1 x TPU Camera mount adapters
4 x Arm guard/Motor mount
1 x TPU Bracket Mount for DJI Air Unit
1 x TPU Antenna Mount for DJI Air Unit Antenna
1 x TPU bottom plate front protective mount
1 x TPU bottom plate rear protective mount
1 x Battery Anti-slip Mat
2 x Battery Straps
| Main body dimension (mm) | 183*287 |
| Bottom-to-top distance (mm) | 35 |
| Arm thickness (mm) | 6 |
| Bottom plate thickness (mm) | 3 |
| Top plate thickness (mm) | 2.5 |
| Camera plate thickness (mm) | 1.5mm( 2.5mm included TPU inserts) |
| Mounting Holes | 30.5*30.5mm / 20*20mm |
| Support camera size | 19*19mm 22*22mm |
| Shipment Weight | 0.302 kg |
| Shipment Dimensions | 16 × 8 × 4 cm |
