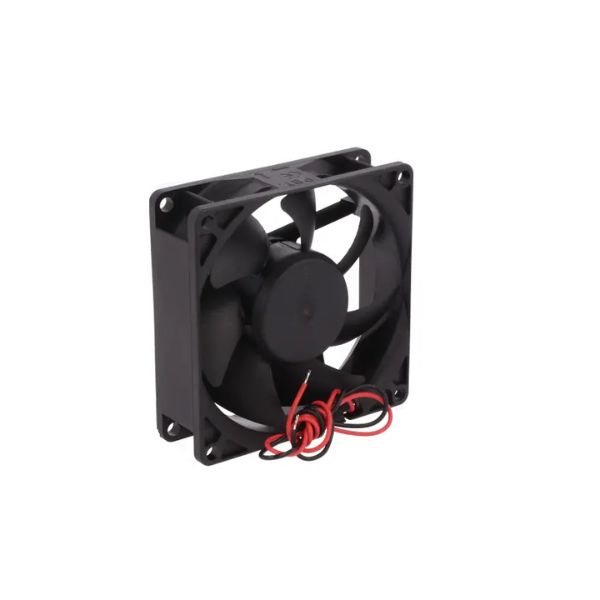

Sunon 8025 12VDC 1.66W Cooling Fan
₹210.00
- Operating Voltage: 12VDC
- Power Consumption: 1.44W
- Body and Blade Constructed from Thermoplastic PBT of UL 94V-0
- Single Phase 4 Pole Brushless DC Motor
- Lubricated Sleeve Bearing System.
- Counterclockwise Rotation Direction if Viewed from front of Fan Blade
- Description
- Specification
- Reviews (0)
Description
This is a High-Quality 80 x 25 mm size Cooling Fan from Sunon. The cooling fan consists of a 4-pole Brushless DC Motor with a precise lubricated sleeve bearing system, this cooling fan can deliver an airflow up to 41 CFM, which is sufficient enough to keep the electronics cool.
Find more details about the product in the attachment section
Features:
- High-Quality Fan with Good Air Flow
- Body and Fan Blade Made from Thermoplastic PBT of UL 94V-0
- Precise Vapo Bearing System
- Single Phase 4 Pole Brushless DC Motor
- Easy to use
Package Includes:
1 x Sunon 8025 12VDC 1.66W Cooling Fan
| Model | EF80251S1-1000U-A99 |
| Rated Speed (RPM) | 3200 |
| Operating Voltage (VDC) | 12 |
| Operating Current (A) | 0.138 |
| Noise Level (dB) | 33 |
| Operating Temperature (°C) | -10 to 70 |
| Power Consumption (Watt) | 1.66 |
| Insulation Class | UL Class A |
| Length (mm) | 80 |
| Width (mm) | 25 |
| Height (mm) | 80 |
| Weight (gm) | 75 |
| Cable Length (cm) | 30 |
| Shipment Weight | 0.078 kg |
| Shipment Dimensions | 9 × 9 × 1 cm |
