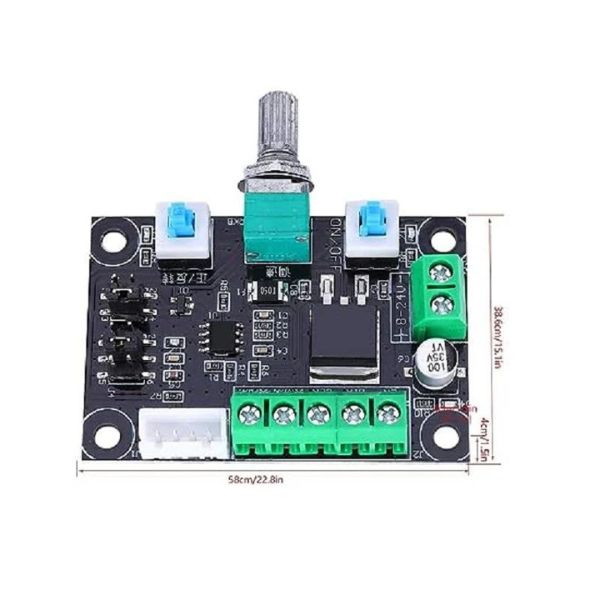

Nema17/23 Stepper Motor Driver MKS OSC PWM Pulse Signal Generator Module Motor Speed Frequency Direction Control Regulator

Description

This is Nema17/23 Stepper Motor Driver MKS OSC PWM Pulse Signal Generator Module Motor Speed Frequency Direction Control Regulator.  MKS OSC is a pulse generating module which can supply pwm signal as you need.

This module is a pulse generation module, supply the control signal to stepper driver. To control the stepper motor, it must be equipped with a drive. This simple controller + stepper motor + stepper motor + DC power supply can be composed of a simple set of control platform. The controller has high 5.4k-160khz, middle 540-16.6khz, low 80-2.4khz total of 3 kinds of low frequency signal can be used to select the jumper. It can produce pulse signal, can also produce PWM signal, can choose the jumper. The frequency of measurement: PUL and common cathode end.

MKS OSC + motor driver + motor + DC power supply = Easy Control Platform!

This module is a versatile and compact solution for controlling NEMA 17 or NEMA 23 stepper motors, especially in applications where precise control of speed, direction, and step count is required. It can be used in various DIY projects, automation systems, or robotics applications where stepper motor control is essential.

Features:

1. CONTROL MOTOR- This module is pulse generation module, supply stepper driver as a signal, to control stepping motor, also must match the drive.
2. EASY TO INSTALL- The simple controller + stepper driver + stepper motor, dc power can be composed of a set of simple control platform.
3. HIGH COMPATIBILITY- The controller has high 5.4 k 540 – in – 160 KHZ, 16.6 KHZ, low on a total of 3 80-2.4 KHZ frequency signal can be used to jump needle selection.
4. THE MAIN FUNCTION- Can produce pulse signal as well as PWM signal, cand an choose jumper.
5. FREQUENCY MEASUREMENT- Can measure both PUL and coyin (or coyang) port.

Package Includes:

1 x  Nema17/23 Stepper Motor Driver MKS OSC PWM Pulse Signal Generator Module Motor Speed Frequency Direction Control Regulator
