MT30 3 Pole Motor/ESC Connector Set Male-1Pcs.

JST Female 2 Pin Connector-10Pcs.
Amass XT30AW Male

MT30 3 Pole Motor/ESC Connector Set Male-1Pcs.

₹77.00

Out of stock
0 out of 5
( There are no reviews yet. )

₹77.00

  1. Brand: Amass
  2. Dimensions: 20 x 10 x 10mm (assembled)
  3. Weight: 2.96g
  4. Suitable for: 16AWG wire (Max)
  5. Color: Yellow
  6. Gender: Male
  7. Gold Plated Connector
  8. High-Quality Material
Availability: Out of stock

Description

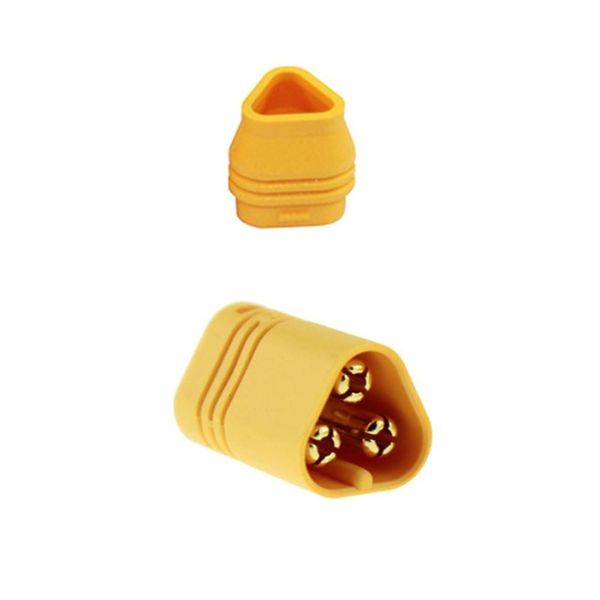

The MT30 3 Pole Motor Connector set is the perfect solution for securing your brushless motor / ESC connections for up to 16AWG wires. The connector set featured with gold plated connecting points, high-quality plastic with ideal design by Amass. Both male and female connectors are fitted with 2mm bullet points to solder the wires and supplied with a cable tidy attachment Cap to keep things nice and neat!

The connectors are manufactured from toughened plastic and provide a very secure fit making them perfect for EDF and multi-rotor applications.

Note: Connector back Cap’s Lock is designed to be very tight, Once you locked it then it is little tough to reopen it.

 Features:

  1. Brand: Amass
  2. Suitable for: 16AWG wire (Max)
  3. Color: Yellow
  4. Gender: Male
  5. Gold Plated Connector
  6. High-Quality Material

Package Includes:

1 x MT30 3 Pole Motor/ESC Connector Set-Male

Brand Amass
Gender Male
Rated Operating Voltage (VDC) 500
Current Handling Capacity (A) 60
No. of Contact Points 3
Connector Type MT30
Contact Material Brass
Contact Plating Gold flash
Operating Temperature Range (°C) -20 to 120
Flammability Rating UL94V-o
Color Yellow
Dimensions (mm) LxWxH 20 x 10 x 10mm (assembled)
Weight (gm) 2.96 per pcs.
Allowed Wire Size (AWG) 18 ~ 16
Shipment Weight 0.04 kg
Shipment Dimensions 4 × 1 × 1 cm
