MH-Z19 Infrared CO2 Sensor Module for CO2 monitor
₹2,480.00
- Operating voltage: 3.6 V ~ 5.5V DC
- Average current: < 18 mA
- High sensitivity, high resolution.
- Low energy consumption.
- Output mode: UART and PWM wave.
- Temperature compensation, excellent linear output.
- Good stability and Long lifespan.
- Anti-interference of water vapor.
- Description
- Specification
- Reviews (0)
Description

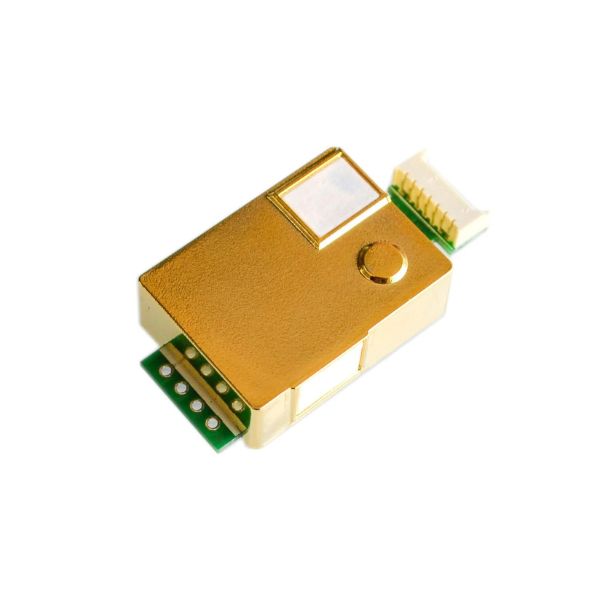

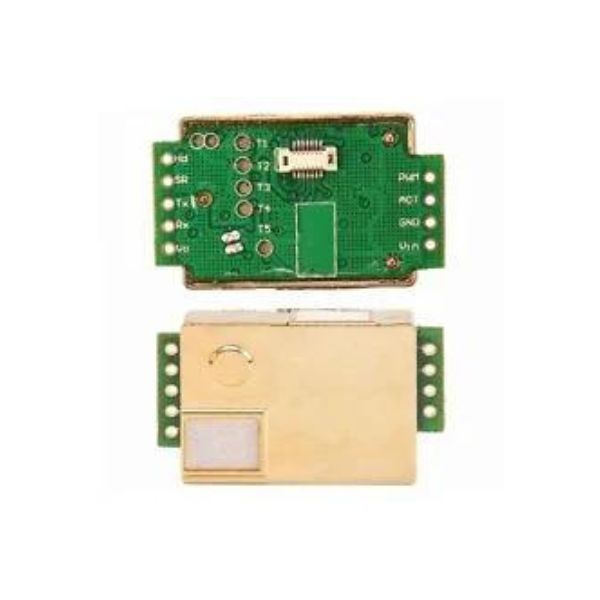

This is MH-Z19 Infrared CO2 Sensor Module for CO2 monitor. The MH-Z19 NDIR infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO 2 in the air, with good selectivity, non-oxygen dependent and long life.
The built-in temperature sensor can do temperature compensation; it has digital output an analog voltage output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design, and superior circuit design.
MH-Z19 NDIR infrared gas module is widely used in the HVAC refrigeration and indoor air quality monitoring.
Features :
- High sensitivity, high resolution.
- Low energy consumption.
- Output mode: UART and PWM wave.
- Temperature compensation, excellent linear output.
- Good stability.
- Long lifespan.
- Anti-interference of water vapor.
- No poisoning.
Package Includes :
1 x MH-Z19 Infrared CO2 Sensor Module.
1 x Connecting Cable.
| Operating Voltage (VDC) | 3.6 to 5.5 |
| Average Current(mA) | <18 |
| Interface Level | 3.3V |
| Measuring Range | 0~5%VOL optional |
| Output Signal | PWM UART |
| Preheat Time(min) | 3 |
| Preheat Time | 90<60 |
| Operating Temperature (°C) | 0 to 50 |
| Lifespan | >5 |
| Dimensions in mm (LxWxH) | |
| Weight (gm) | 6 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 7 × 6 × 4 cm |
