M5STACK H-bridge Unit(STM32F030)
₹1,139.00
- MCU: STM32F030F4P6
- DC bidirectional motor driver chip RZ7899
- External access DC voltage MAX: 12V
- I2C mailing address Default 0x20 (can be modified by toggle of the encoding switch)
- Maximum allowable current: 3A
- Description
- Specification
- Reviews (0)
Description

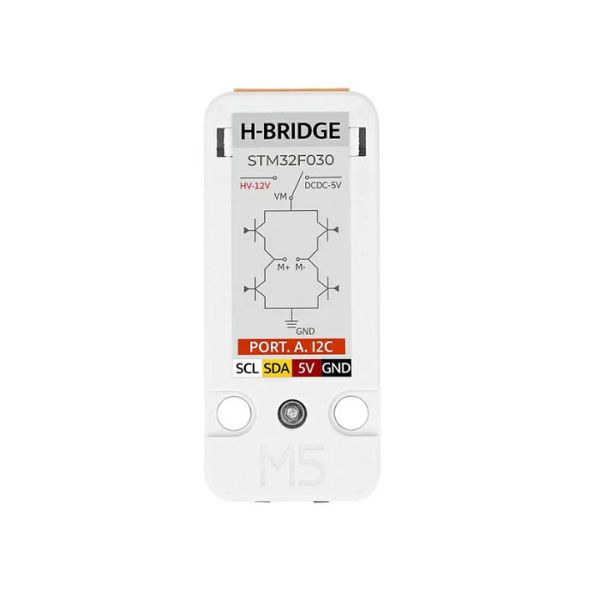

Hbridge Unit is a DC motor drive module, using "STM32F030+RZ7899" scheme to realize the motor drive function, and using I2C communication with the M5 host to realize PWM control speed, forward, backward and braking functions. The module has reliable over-current, over-voltage, over-temperature protection function, which can ensure the safe operation of the motor, and also has 6-12V and 5V switching circuits in the circuit to adapt to the input power requirements of different motors, which are widely used in ‘robots, motor drives, industrial automation, smart homes, and other fields
Features:
- Over-current, overvoltage, and over-temperature protection
- Power switching
- I2C address: Default 0x20
- Programming platform: Arduino, UIFlow
Package Includes:
1 x M5STACK H-bridge Unit(STM32F030)
| MCU | STM32F030F4P6 |
| DC bidirectional motor driver chip | RZ7899 |
| Operating Voltage (VDC) | MAX 12V |
| I2C mailing address | Default 0x20 (can be modified by toggle of the encoding switch) |
| Length (mm) | 48mm |
| Width (mm) | 24 |
| Height(mm) | 8 |
| Shipment Weight | 0.013 kg |
| Shipment Dimensions | 14 × 9 × 2 cm |
