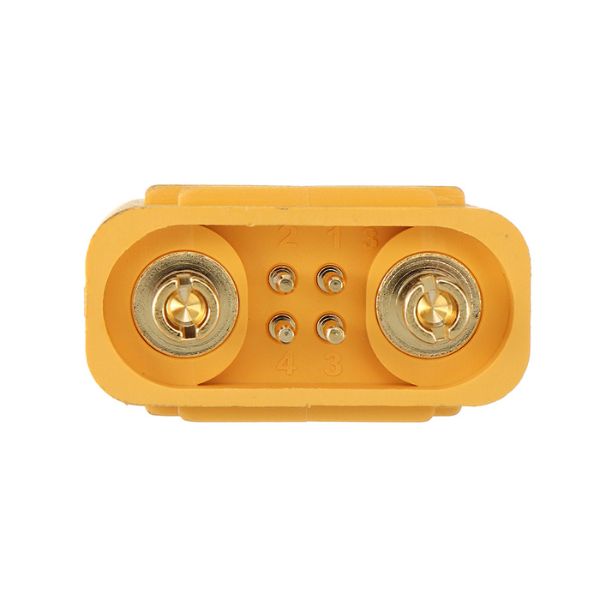

Amass AS150UPB-Male 140A Connector
₹375.00
- Brand Name: Amass
- Item Name: AS150UPB-M
- Contact Material: Brass Gold-plated Copper
- Body Material: Nylon/PA
- Max. RC/MC: 140A
- Recommend Use: 1000 times
- Recommend Cable Spec.: 8AWG/24AWG
- Description
- Specification
- Reviews (0)
Description
Buy an Original High-Quality Amass AS150UPB-Male Connector for your application. The AS150UPB-M connectors provide a solid, high-amp connection – perfect for applications up to and beyond 140 amps!
IMPORTANT: These are not cheap copied connectors. These original high-quality plugs, manufactured by AMASS, can handle over 140A current for extended periods without exceeding 100DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon plugs available on market.
Schematic:
Features:
- Contact Material: Brass Gold-plated Copper
- Body Material: Nylon/PA
- Easy to use
- Quality product
Package Includes:
1 x Amass AS150UPB-Male 140A Connector
| Metal material | Brass gold plated |
| Plastic material | PA66 |
| FR Level | UL94 V0 |
| Recommended Use | Battery |
| Temperature rise | 70A＜70℃ (1 hour); 140A＜ 80℃（1min） |
| Weld mental | Main copper 3.3; Signal pin 2.5 |
| CR | 0.40mΩ |
| Rated voltage | ＜DC 50V |
| Rated Current | 70A |
| Instantaneous current | 140A |
| Use times | 1000 times |
| Insertion force | 3-5kg |
| Cable spec. | 8AWG/24AWG |
| Temperature | 20℃ to 120℃ |
| Weight | 20g |
| Dimensions | 33 x 25 x 18 mm (L x W x H) |
| Shipment Weight | 0.03 kg |
| Shipment Dimensions | 6 × 5 × 2 cm |
