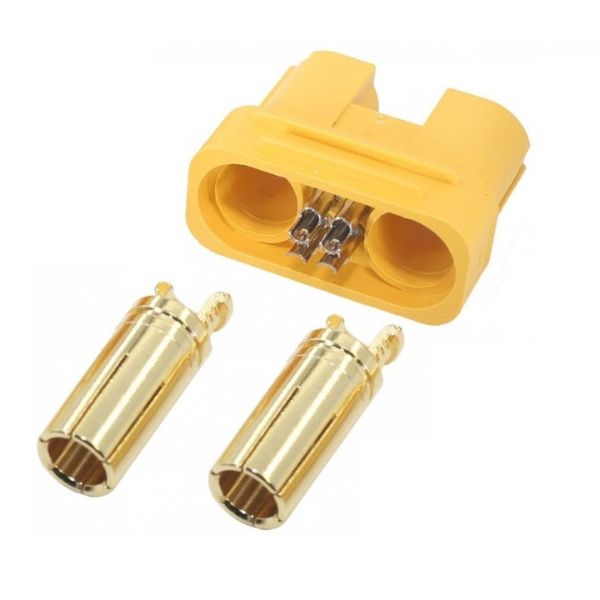

Amass AS150U Female Connector

₹742.00

Out of stock
0 out of 5
( There are no reviews yet. )

₹742.00

  1. Instantaneous Current: 140A
  2. Rated Current: 75A
  3. Contact resistance: ≤0.8mΩ
  4. Rated voltage: DC 500V
  5. Flame Retardant Rating: UL94 V0
Availability: Out of stock

Description

These are Original high-quality Amass AS150U Female connectors for power and signal, 6 pins, 2 pin 150A.
The AS150U Female connector by Amass offers exceptional reliability and efficiency for your electrical connections. Engineered to deliver seamless performance even in demanding applications, this connector ensures a secure and stable connection. Trust Amass for high-quality connectors that meet your needs with precision and durability.
Suitable connectors for UAV or VTOL with motors and servos, batteries on the wings.

Features:

  1. Contact Material: Brass Gold-plated Copper
  2. Body Material: Nylon/PA
  3. Easy to use
  4. Quality product

Package Includes:

1 x Amass AS150U Female Connector (Original)

Instantaneous Current 140A
Rated Current 75A
Contact resistance ≤0.8mΩ
Rated voltage DC 500V
Flame Retardant Rating UL94 V0
Recommended Use Lithium Battery, Controller, Charger
Metal Material Copper Plating
Recommended wire gauge 8 AWG
Insulation Material PA6
Operating Temperature -20°C to 120°C
Shipment Weight 0.025 kg
Shipment Dimensions 8 × 6 × 2 cm
