20A Brushed Electronic Speed Controller
₹414.00
- Operating Voltage: 3 – 9VDC
- Output Current: 20A
- Battery Input: 2S Lipo
- Driver Frequency: 2KHz
- Description
- Specification
- Reviews (0)
Description

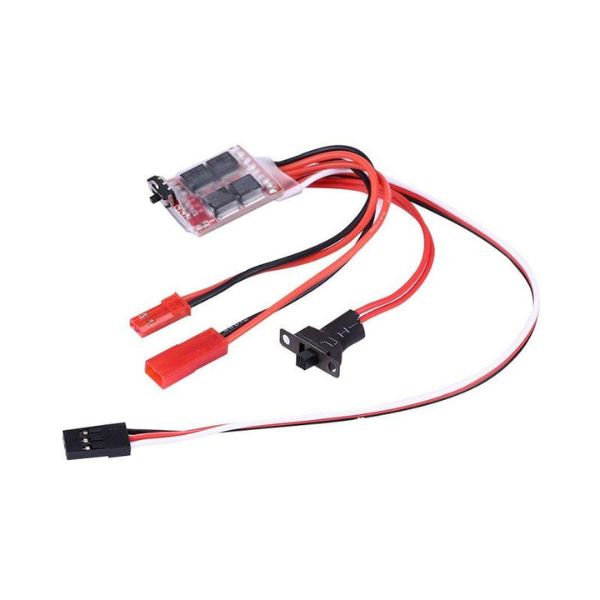

This 20A Brushed Electronic Speed Controller is a small-sized ESC that can supply a current up to 20A by using a 2S lipo battery as an input. The ESC accepts a standard RC signal as input and offers functions as forward, reverse, and breaking. This ESC has high-quality silicone cables for the battery input and the motor output.
Features:
- Continuous Current :20A
- Battery Input: 2S Lipo
- Can be used with 130/180/260/380 brushed motor
- Three Functions: Forward/Reverse/Breaking
Package Includes:
1 x 20A Brushed Electronic Speed Controller
| Operating Voltage (VDC) | 3 ~ 9 |
| Constant Current | 20A |
| Maximum Current | 25A |
| Battery Input | Li-Po 2S |
| Driver Frequency | 2KHz |
| Length (mm) | 35 |
| Width (mm) | 22 |
| Height (mm) | 6 |
| Weight (gm) | 13 |
| Shipment Weight | 0.017 kg |
| Shipment Dimensions | 9 × 11 × 1 cm |
